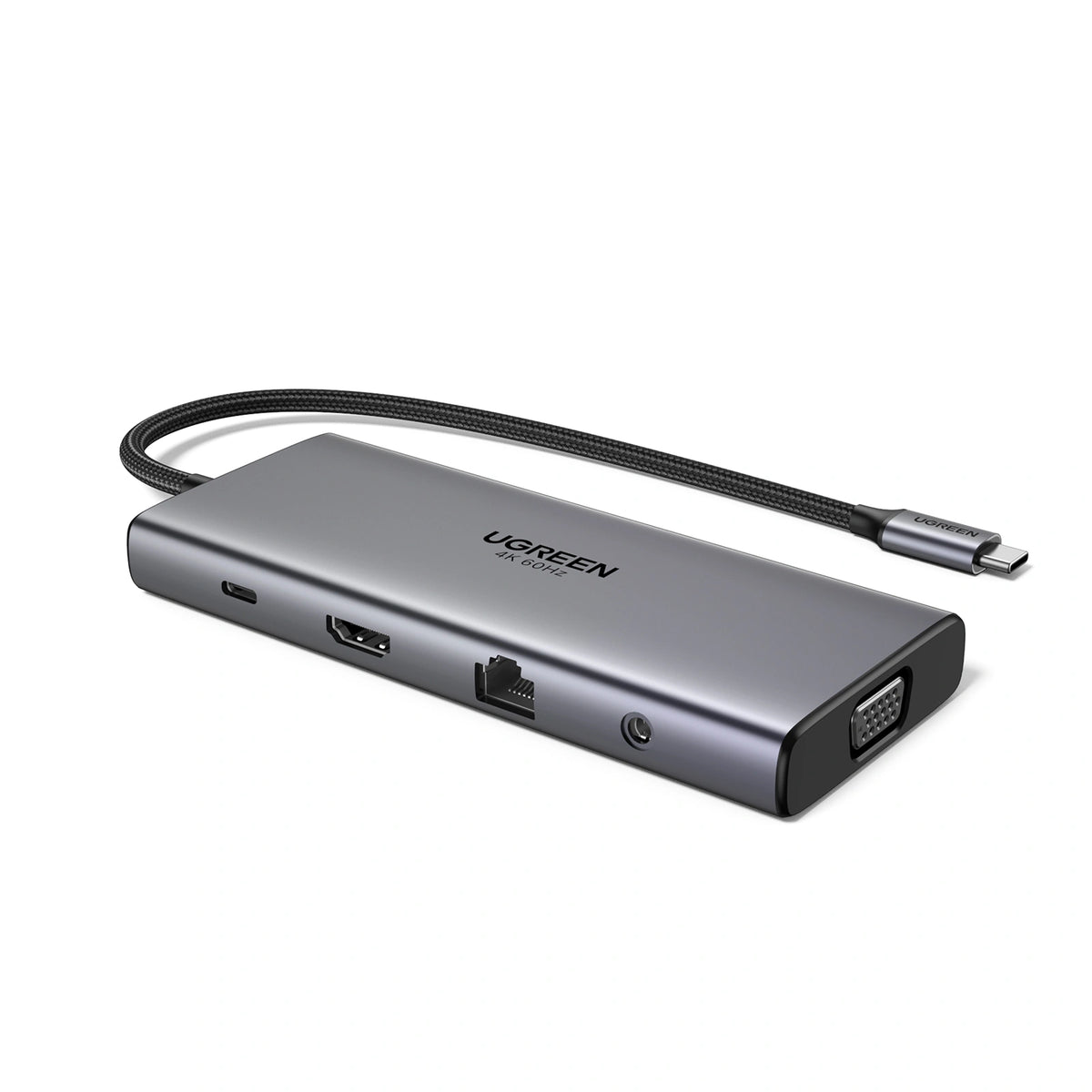

UGreen 45520 11-in-1 USB-C Expansion Hub

Expand your laptop or tablet with the UGreen 45520 11-in-1 USB-C docking station. Designed for work, presentations and everyday connectivity, it combines 4K HDMI, VGA, high-speed USB ports, Gigabit Ethernet, SD and TF card readers, 3.5mm audio and 100W USB-C Power Delivery in one compact hub.

Connect an external HDMI display at up to 4K@60Hz and a VGA display at up to 1080p@60Hz. HDMI and VGA can be used simultaneously for a dual-display setup, while the high-speed USB ports provide up to 10Gbps data transfer for compatible peripherals and storage devices.

Specifications

• Model: UGreen 45520
• Series: CM639
• Ports: 11-in-1
• 1 × HDMI 2.0 — up to 4K@60Hz
• 1 × VGA — up to 1080p@60Hz
• 2 × USB-C 3.2 — up to 10Gbps
• 1 × USB-A 3.2 — up to 10Gbps
• 1 × USB-A 3.0 — up to 5Gbps
• 1 × Gigabit Ethernet (RJ45) — 10/100/1000Mbps
• 1 × SD card slot
• 1 × TF / MicroSD card slot
• 1 × 3.5mm audio output
• 1 × USB-C PD charging input — up to 100W
• HDMI + VGA: Simultaneous display supported
• HDMI: HDCP 2.2, HDR10 and 3D support
• Material: Aluminum alloy
• Color: Grey

Compatibility

Compatible with laptops, tablets and other USB-C devices that support video output through DisplayPort Alt Mode. Compatible systems include Windows, macOS and Linux, depending on the host device and supported functions.

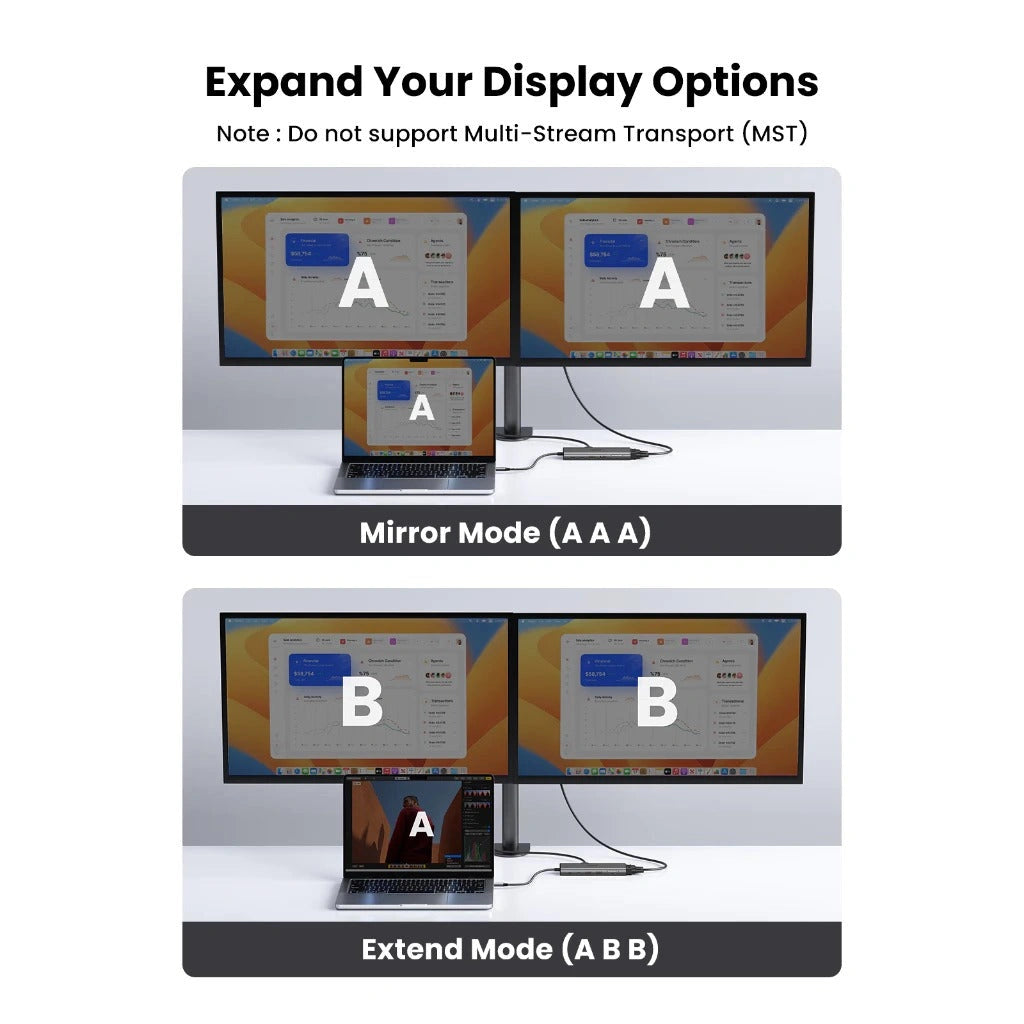

Note: Display functionality depends on the USB-C host device supporting DisplayPort Alt Mode. HDMI + VGA simultaneous operation is supported, but the actual extended-display behavior depends on the operating system and host device. The 100W PD rating refers to the power input capability of the hub; the connected device receives less after the hub's own power consumption.

Warranty: 1 Year UGreen Warranty
